Uncoated Plano-Convex (PCX) Lenses

Uncoated Plano-Convex (PCX) Lenses

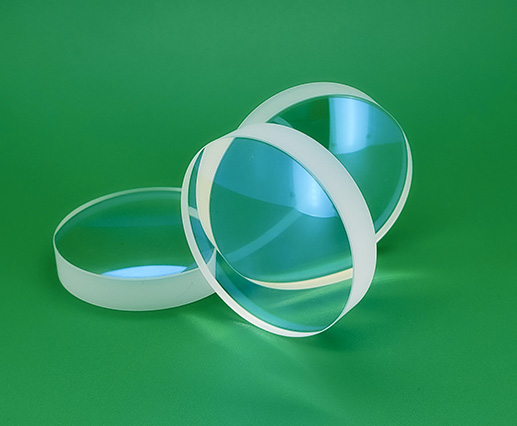

CLZ Optical Co., Ltd. offers uncoated plano-convex lenses that are ideal for collecting and focusing light in imaging applications, concentrating light onto a detector or imaging plane for improved clarity and detail. They are also ideal for various applications involving emitters, detectors, lasers, and fiber optics.


CLZ Uncoated Plano-Convex (PCX) Lenses are available in a variety of diameters and focal lengths. These PCX lenses are also available with Anti-Reflection coatings including MgF2, VIS 0°, VIS-NIR, and more. Check out our online stock product catalog for more information on what you need.

Please contact our sales team.

For a quote on your custom requirements please send us your drawing or specification.

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Type No. Data sheet MaterialDiameter (mm)CoatingEFL (mm)CT (mm)
L-PX001050076Z PDF > BK7 or equivalent 76.2 Uncoated 500 8
L-PX0010500075 PDF > BK7 or equivalent 75 Uncoated 500 8
L-PX001050050Z PDF > BK7 or equivalent 50.8 Uncoated 500 5.5
L-PX0010500050 PDF > BK7 or equivalent 50 Uncoated 500 5.5
L-PX001040076Z PDF > BK7 or equivalent 76.2 Uncoated 400 8
L-PX0010400075 PDF > BK7 or equivalent 75 Uncoated 400 8
L-PX001040050Z PDF > BK7 or equivalent 50.8 Uncoated 400 5.5
L-PX0010400050 PDF > BK7 or equivalent 50 Uncoated 400 5.5
L-PX001030076Z PDF > BK7 or equivalent 76.2 Uncoated 300 8
L-PX0010300075 PDF > BK7 or equivalent 75 Uncoated 300 8
L-PX001030050Z PDF > BK7 or equivalent 50.8 Uncoated 300 5.5
L-PX0010300050 PDF > BK7 or equivalent 50 Uncoated 300 5.5
L-PX001025076Z PDF > BK7 or equivalent 76.2 Uncoated 250 8
L-PX0010250075 PDF > BK7 or equivalent 75 Uncoated 250 8
L-PX001025050Z PDF > BK7 or equivalent 50.8 Uncoated 250 5.5
L-PX0010250050 PDF > BK7 or equivalent 50 Uncoated 250 5.5
L-PX001020076Z PDF > BK7 or equivalent 76.2 Uncoated 200 11
L-PX0010200075 PDF > BK7 or equivalent 75 Uncoated 200 11
L-PX001020050Z PDF > BK7 or equivalent 50.8 Uncoated 200 7
L-PX0010200050 PDF > BK7 or equivalent 50 Uncoated 200 7
L-PX0010175075 PDF > BK7 or equivalent 75 Uncoated 175 11
L-PX001017550Z PDF > BK7 or equivalent 50.8 Uncoated 175 7
L-PX0010175050 PDF > BK7 or equivalent 50 Uncoated 175 7
L-PX001015076Z PDF > BK7 or equivalent 76.2 Uncoated 150 14
L-PX0010150075 PDF > BK7 or equivalent 75 Uncoated 150 14
L-PX001015050Z PDF > BK7 or equivalent 50.8 Uncoated 150 9
L-PX0010150050 PDF > BK7 or equivalent 50 Uncoated 150 9
L-PX001012550Z PDF > BK7 or equivalent 50.8 Uncoated 125 10
L-PX0010125050 PDF > BK7 or equivalent 50 Uncoated 125 10
L-PX001010050Z PDF > BK7 or equivalent 50.8 Uncoated 100 10
L-PX0010100050 PDF > BK7 or equivalent 50 Uncoated 100 10
L-PX001100076Z PDF > BK7 or equivalent 76.2 Uncoated 1000 6
L-PX0010600042 PDF > BK7 or equivalent 42 Uncoated 600 2.7
L-PX0010350075 PDF > BK7 or equivalent 75 Uncoated 350 7.4
L-PX0010200040 PDF > BK7 or equivalent 40 Uncoated 200 3.9
L-PX0010180075 PDF > H-K51 75 Uncoated 180 9
L-PX0010150082 PDF > BK7 or equivalent 82 Uncoated 150 15.5
L-PX0010140077 PDF > BK7 or equivalent 77 Uncoated 140 13.9
L-PX0010127025 PDF > BK7 or equivalent 25 Uncoated 127 3.2
L-PX0010100065 PDF > BK7 or equivalent 65 Uncoated 100 13.3
L-PX0010050038 PDF > BK7 or equivalent 38 Uncoated 50 10.3
L-PX001075076Z PDF > BK7 or equivalent 76.2 Uncoated 750 6
L-PX001050028Y PDF > BK7 or equivalent 28.5 Uncoated 500 1.7
L-PX001017576Z PDF > BK7 or equivalent 76.2 Uncoated 175 10.4
