Sapphire Materials: From Crystal Structure to Precision Optical Applications
Jul. 31, 2026
In high-performance optics and demanding industrial applications, sapphire materials hold an irreplaceable position due to their exceptional physical properties. However, the reason why sapphire is the preferred choice for high-end window elements and filters lies not only in its hardness but also deeper within its crystal structure—specifically, in its atomic arrangement, commonly referred to as its "crystal orientation."
Sapphire is composed of single-crystal alumina (α-Al₂O₃) and belongs to the trigonal crystal system. Its microstructure can be visualized as a three-dimensional structure built from aluminum ions and oxygen ions that strictly follow the "hexagonal close-packed" arrangement rules.
The so-called "crystal orientation" refers to the masonry direction of this building. For different crystal orientations, the atomic packing density and interatomic spacing vary; this directly results in the anisotropic physical, chemical, and optical properties exhibited by sapphire. For optical-grade sapphire, the following crystal orientations are particularly critical:
1. C-axis (0001) — Reference plane for optical applications
The C-direction is the most common growth direction, with the crystal plane being perpendicular to the optical axis (C-axis).
Structural characteristics: The atoms exhibit hexagonal symmetry arrangement within this plane.
Optical advantages: In C-cut sapphire, no birefringence occurs along the optical axis. When light is incident perpendicularly upon a C-cut wafer, no ghost images are produced due to birefringence, thereby maintaining extremely high imaging quality.
Application: This is an ideal choice for manufacturing high-end camera back panels, smartphone fingerprint recognition windows, and watch face lenses.
2. A Section (11–20)
The crystal plane A is parallel to the optical axis.
Structural characteristics: The atomic bonding strength in this direction is extremely strong, endowing the material with exceptionally high mechanical strength.
Mechanical advantages: The bending strength and impact resistance of A-oriented sapphire typically surpass those of other crystal orientations, while the surface roughness after polishing can be reduced to an extremely low level.
Application: Highly suitable for scenarios requiring resistance to high pressure differentials and severe mechanical shocks, such as deep-sea exploration windows and viewing ports on sandblasting machines.
3. R toward (1–102) — conducive to the formation of functional coating
The R direction forms a specific angle of approximately 57.6° with the optical axis relative to the crystal plane.
Structural characteristics: This unique oblique cross-section provides an excellent lattice-matching template for heteroepitaxial growth.
Functional advantages: Historically, R-sapphire has served as the key substrate for growing silicon-based thin films, and continues to play a vital role in specific semiconductor and piezoelectric thin-film deposition processes (such as certain lithium niobate fabrication processes).
Application rationale: For precision optical components requiring the plating of complex functional optical filter films, treating specific surface energy states with R facilitates more robust adhesion of the coating layer.
4. M<sub>10–10</sub> — Preferred for precision machining
The M direction is also parallel to the optical axis, but is perpendicular to the A direction.
Process characteristics: In chemical mechanical polishing, the M-direction demonstrates unique rate advantages and excellent surface integrity.
Application scenarios: Widely used in ultra-high-power laser windows where stringent requirements for internal stress control are necessary.
Once the essence of crystal orientation is understood, the applications of sapphire lenses across various fields become considerably clearer.
In such complex and sophisticated sapphire optical applications, finding a partner who possesses both expertise in materials science and mastery of precision manufacturing is crucial. CLZ Optical Co., Ltd. is precisely the trusted choice for you.
We specialize in the processing of sapphire optical components, meticulously controlling every step of the process starting from the initial material selection. Based on your specific requirements, we can provide fully customized solutions.
CLZ Optical offers a diverse range of sapphire products:

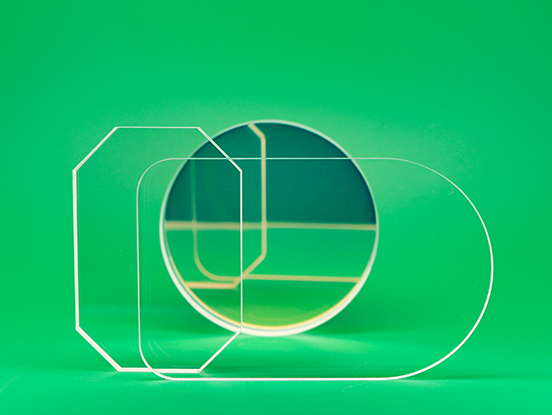

Sapphire window panels: We can provide solutions ranging from standard components to high-precision custom parts, covering a wide variety of sizes, specifications, and shapes to meet your specific requirements.
Sapphire filters: We offer precision-polished custom-coated substrates capable of supporting various types of optical coatings, such as long-pass, short-pass, and bandpass filters, ensuring robust coating adhesion and stable spectral performance to meet the stringent requirements of applications spanning from the ultraviolet to the mid-infrared regions.
CLZ Optical Co., Ltd. leverages its professional expertise to provide you with the highest quality sapphire lenses. We welcome your contact with us.
