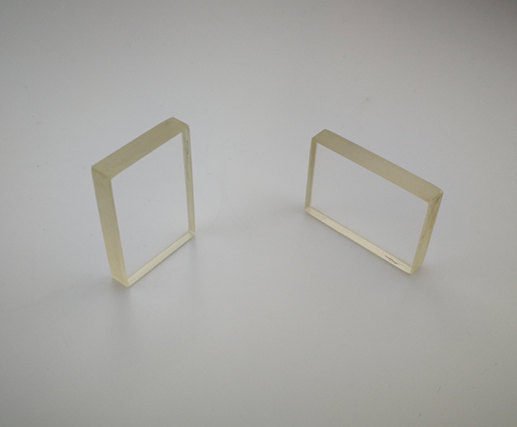

Square Precision window, 35x25mm, 6mm Thick, 450-900nm Ravg < 0.5% Single Sided coated, BK7 Precision Windows
PRODUCT DESCRIPTION
| Part Number | CWP-3525 | ||
| Diameter (mm): | Diameter Tolerance (mm): | ||
| Length / width (mm): | 35x25 | L/D Tolerance (mm): | ±0.1 |
| Center Thickness CT (mm): | 6 | Center Thickness Tolerance (mm): | ±0.1 |
| Substrate: | N-BK7 or Equivalent | Surface Quality: | 40-20 |
| Flatness @ 632.8nm: | λ/4 | Parallelism | < 1 arcmin |
| Clear Aperture CA (mm): | >= 90% | Bevel: | Protective bevel as needed |
| Coating: | 450-900nm Ravg < 0.5% Single Sided | Type: | N-BK7 Precision Windows |
