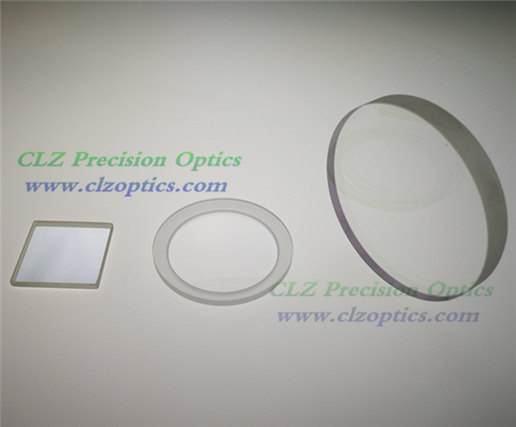

BK7 Precision Windows, 50mm Dia, 6mm Thick, 1/4 wave, Uncoated
PRODUCT DESCRIPTION
| Part Number | CWP-5006 | ||
| Diameter (mm): | 50 | Diameter Tolerance (mm): | +0.00/-0.10 |
| Length / width (mm): | L/D Tolerance (mm): | ||
| Center Thickness CT (mm): | 6 | Center Thickness Tolerance (mm): | ±0.1 |
| Substrate: | N-BK7 or Equivalent | Surface Quality: | 40-20 |
| Flatness @ 632.8nm: | λ/4 | Parallelism | < 30 Arc Seconds |
| Clear Aperture CA (mm): | >= 90% | Bevel: | Protective bevel as needed |
| Wavelength Range (nm): | 350 - 2200 | Type: | Precision Windows |
