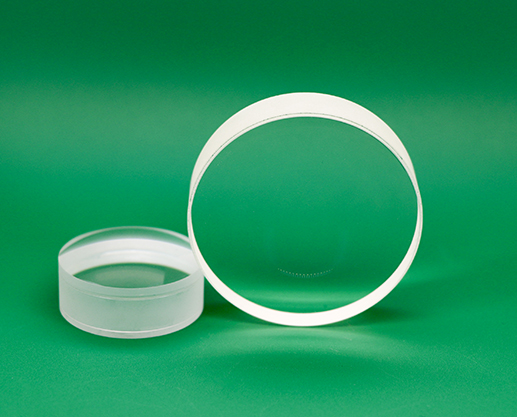

Why Choose an Achromatic Lens?

Achromatic lenses, commonly called achromats, are essential components in high-performance optical systems. Unlike single-element lenses, achromatic lenses are designed to reduce chromatic and spherical aberrations, delivering superior image quality. They are widely used in scientific instruments, imaging devices, laser systems, and optical relays where precision and clarity are critical.

Structure and Composition of an Achromatic Lens

An achromatic lens is typically a combination of two or more optical elements bonded together. The most common configuration is a doublet, consisting of a positive low-dispersion element (crown glass) paired with a negative high-dispersion element (flint glass). This combination allows designers to optimize optical performance far beyond what a single-element lens can achieve.

While a singlet lens is composed of a single glass piece, the doublet design provides additional flexibility in correcting for chromatic aberration, resulting in clearer and sharper images. Achromatic lenses are available in several configurations, including positive, negative, triplet, and aspherized designs. Notably, the number of elements does not directly correlate to the number of wavelengths corrected; even a doublet can effectively correct for both red and blue wavelengths in visible light applications.

Positive and Negative Achromatic Lenses

Positive achromatic lenses converge light and are commonly used in imaging, projection, and laser systems, providing clear and focused images. Negative achromatic lenses, on the other hand, diverge light and are ideal for beam expansion, collimation, or optical relay applications. Both designs maintain minimal chromatic aberration, ensuring consistent color accuracy across the visible spectrum.

Triplet and Aspherized Achromatic Lenses

Triplet achromatic lenses, composed of three optical elements, offer even higher correction for chromatic and spherical aberrations. They are particularly useful in high-resolution imaging systems and applications where precise color fidelity is essential.

Aspherized achromatic lenses combine the benefits of aspheric surfaces with achromatic correction. By modifying one or more surfaces into a non-spherical shape, these lenses reduce spherical aberration while maintaining excellent color correction. This innovation enables compact, cost-effective designs suitable for high numerical aperture imaging, laser beam expansion, and high-precision relay optics. Compared to traditional achromatic lenses, aspherized versions provide significantly better resolution and image uniformity without increasing the system’s size.

Manufacturing Process of Aspherized Achromatic Lenses

The creation of aspherized achromatic lenses involves bonding conventional glass elements with a photosensitive polymer applied to one surface. This polymer layer is shaped using precision molds and cured under UV light, providing a consistent aspheric profile. While this approach offers cost-effective replication and flexibility, it has operational limits, including a narrower temperature range (-20°C to 80°C) and reduced suitability for deep-UV applications. Although not as scratch-resistant as full-glass optics, these lenses are easy to replace, making them practical for many commercial optical systems.

Key Advantages of Achromatic Lenses

Superior Polychromatic Imaging
Achromatic lenses excel at multi-color imaging, making them ideal for applications that require accurate reproduction of white light. By combining two optical elements with complementary dispersion properties, achromats effectively minimize chromatic aberration, providing clear, sharp images across a wide color spectrum. This makes them more cost-effective than using multiple corrective lenses to achieve the same result.

Correction of Spherical Aberration and Coma
Beyond color correction, achromatic lenses also reduce spherical aberration and on-axis coma. This ensures high-quality imaging even at large apertures, with consistently smaller spot sizes and sharper images. Unlike simple lenses, achromatic lenses maintain image quality without the need to “stop down” the aperture, preserving both brightness and system speed.

Enhanced Energy Throughput and Brighter Images
Because achromatic lenses do not require reducing the aperture for optimal performance, they allow the full clear aperture to be used. This maximizes light transmission, resulting in brighter images and higher energy efficiency. Optical systems using achromatic lenses are therefore faster, more powerful, and more efficient than comparable systems relying on singlet lenses.

Applications of Achromatic Lenses

Achromatic lenses are versatile components in modern optical systems. Their precise color and aberration correction make them ideal for:

High-resolution imaging systems

Optical relays and beam expanders

Laser collimators and projection systems

Scientific instruments and laboratory optics

High numerical aperture microscopy

The combination of clear, chromatically corrected images and efficient light transmission makes achromatic lenses a cornerstone in advanced optical design.
